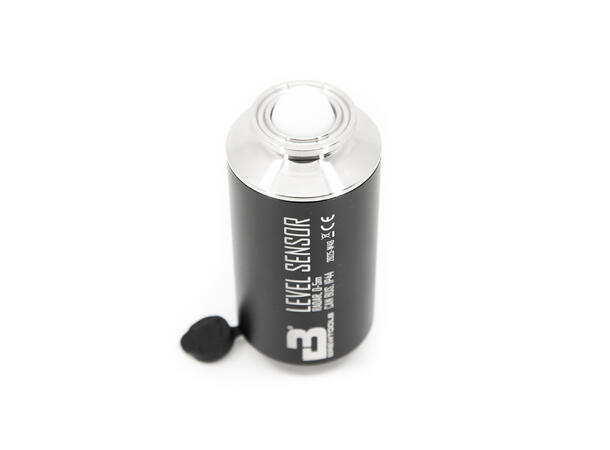

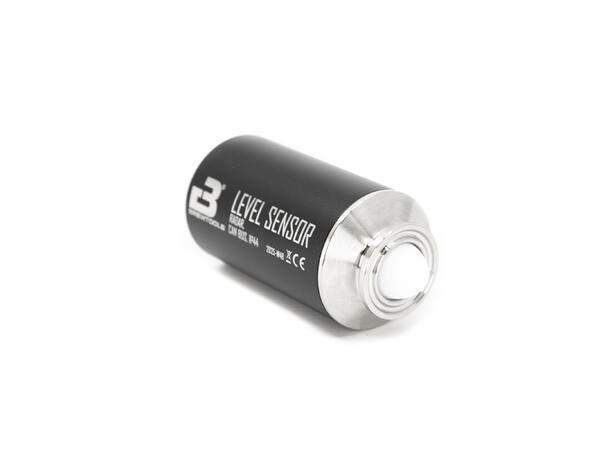

Radar based level sensor for FCS

The days of guessing tank the volume during filling or kegging/bottling is over. Radar based level sensor designed to measure the tank volume down to the cone in a fermentation tank.

The sensor is configured by setting the colume, tank diameter and distance to the cone. It's easliy done by filling water in the tank to the top of the cone.

The sensor should be installed on a vertical flange on the top of the tank, ideally on a single port welded on the curved top surface. Avoid using tees/pipes between the sensor and the tank.

Specifications:

Measuring distance: 0-3m (Preliminary)
Flange: TC34mm. Ø19mm minimum
Connector: LP12 5-pin (CAN bus + 24V)

Note: During fermentation the krausen/foam will give incorrect values.
